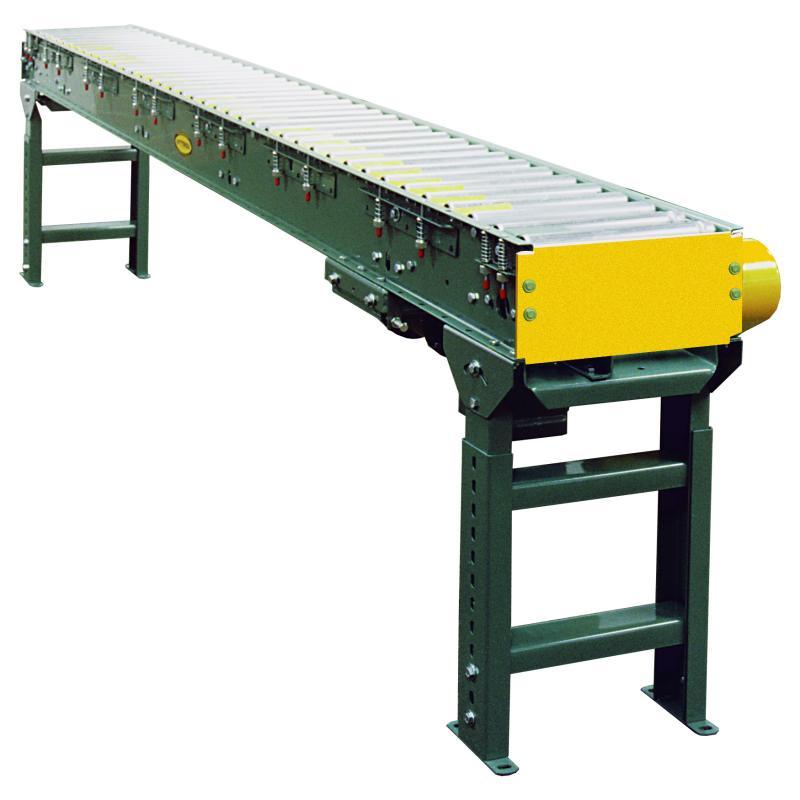

The Model 138-ACC V-Belt Driven Light Duty Accumulating Conveyor is a simple method to accumulate cartons, boxes, and other similar items. Basic design eliminates complicated adjustments, and allows a minimum of 2% back pressure.
Model 138-ACC Features:
- 4 Bed Widths
- 2% Minimum Back Pressure
- Finger Tip Snub Roller Adjustment, No Tools Needed
- Reversible
- Adjustable LS-Type Floor Supports Available
Model 138-ACC Specifications:
- Bed – 6-1/2″ deep x 12 ga. formed steel channel frame powder painted
- Rollers – 1-3/8″ dia. x 18 ga. galvanized tread rollers spaced every 3″ and 1-3/8″ dia. x 18 ga. galvanized pressure roller spaced every 6″
- Overall frame widths: 12″, 15″ , 18″ , & 24″
- Capacity – Maximum load per linear ft. of conveyor; 50 lbs., not to exceed rated capacities
